VolViz::Private_::Geometry Class Reference

#include <Geometry.h>

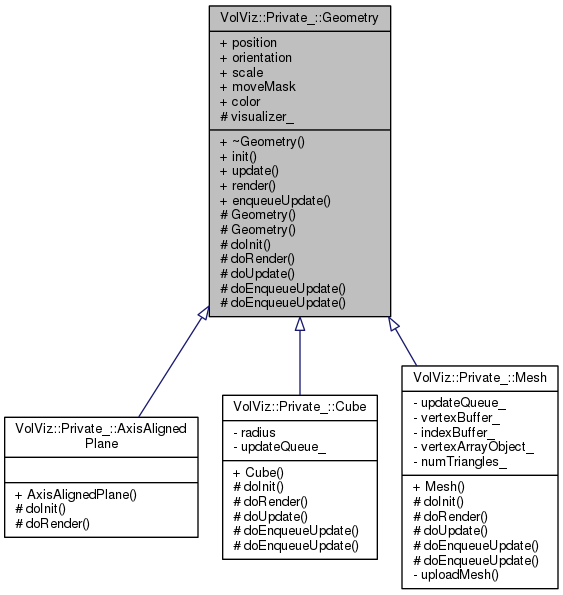

Inheritance diagram for VolViz::Private_::Geometry:

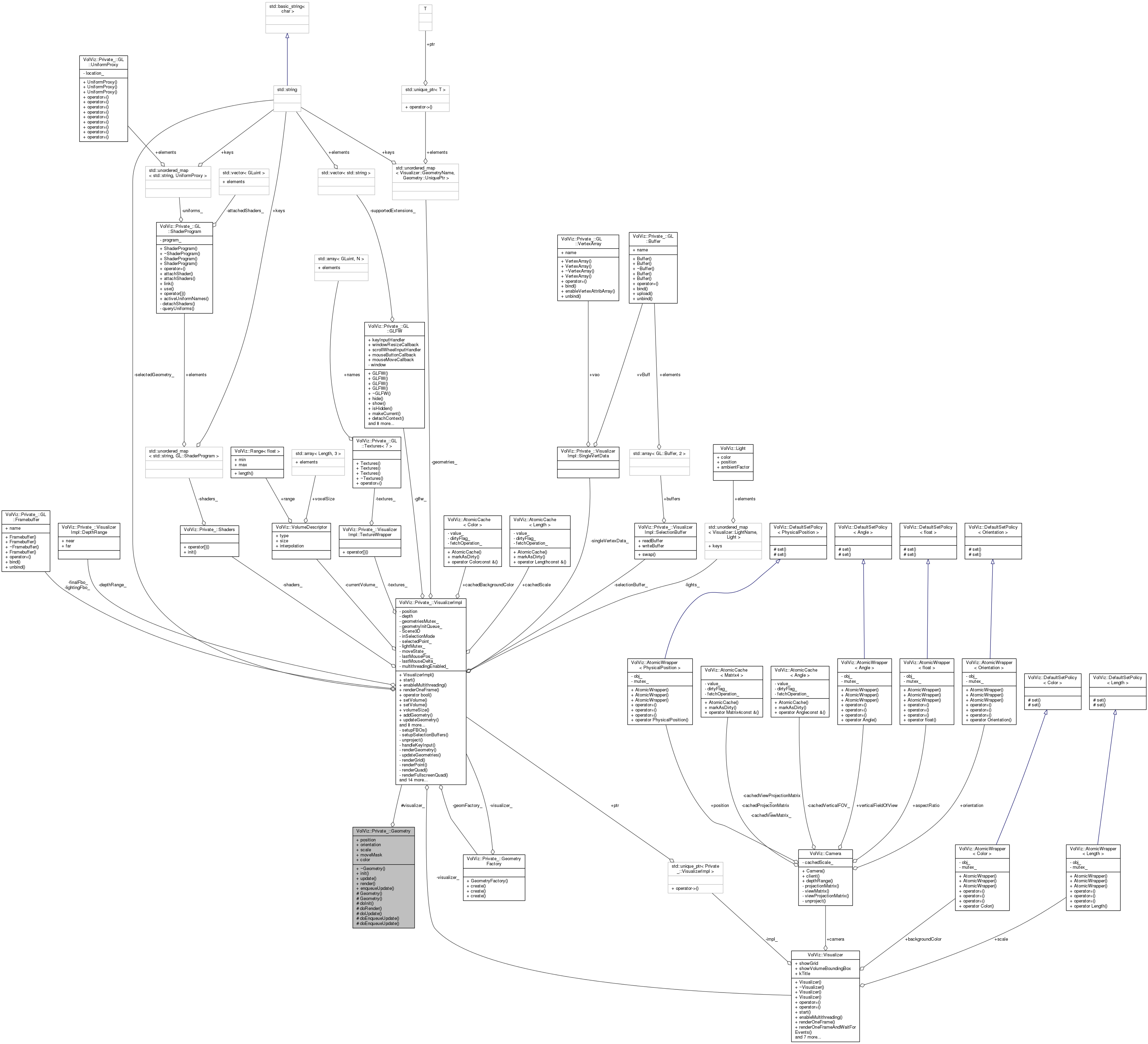

Collaboration diagram for VolViz::Private_::Geometry:

Public Types
using	UniquePtr = std::unique_ptr< Geometry >

Public Member Functions
virtual	~Geometry ()=default
void	init ()
void	update ()
void	render (std::uint32_t index, bool selected)
template<class Descriptor , typename = std::enable_if_t<std::is_base_of< GeometryDescriptor, std::decay_t<Descriptor>>::value>>
void	enqueueUpdate (Descriptor &&descriptor)

Public Attributes
Position	position {Position::Zero()}
Orientation	orientation {Orientation::Identity()}
Length	scale {1 * milli * meter}
MoveMask	moveMask {MoveMask::All}
Color	color {Colors::White()}

Protected Member Functions
	Geometry (VisualizerImpl &visualizer)
	Geometry (GeometryDescriptor const &descriptor, VisualizerImpl &visualizer)
virtual void	doInit ()
virtual void	doRender (std::uint32_t index, bool selected)=0
virtual void	doUpdate ()
virtual void	doEnqueueUpdate (GeometryDescriptor const &descriptor)
virtual void	doEnqueueUpdate (GeometryDescriptor &&descriptor)

Protected Attributes
VisualizerImpl &	visualizer_

Member Typedef Documentation

using VolViz::Private_::Geometry::UniquePtr = std::unique_ptr<Geometry>

Constructor & Destructor Documentation

virtual VolViz::Private_::Geometry::~Geometry ( )

virtualdefault

VolViz::Private_::Geometry::Geometry ( VisualizerImpl &  visualizer )

protected

VolViz::Private_::Geometry::Geometry ( GeometryDescriptor const &  descriptor, VisualizerImpl &  visualizer  )

protected

Member Function Documentation

void VolViz::Private_::Geometry::doEnqueueUpdate ( GeometryDescriptor const &  descriptor )

protectedvirtual

Reimplemented in VolViz::Private_::Mesh, and VolViz::Private_::Cube.

void VolViz::Private_::Geometry::doEnqueueUpdate ( GeometryDescriptor &&  descriptor )

protectedvirtual

Reimplemented in VolViz::Private_::Mesh, and VolViz::Private_::Cube.

void VolViz::Private_::Geometry::doInit ( )

protectedvirtual

Reimplemented in VolViz::Private_::Mesh, VolViz::Private_::AxisAlignedPlane, and VolViz::Private_::Cube.

virtual void VolViz::Private_::Geometry::doRender ( std::uint32_t  index, bool  selected  )

protectedpure virtual

Implemented in VolViz::Private_::Mesh, VolViz::Private_::AxisAlignedPlane, and VolViz::Private_::Cube.

void VolViz::Private_::Geometry::doUpdate ( )

protectedvirtual

Reimplemented in VolViz::Private_::Mesh, and VolViz::Private_::Cube.

template<class Descriptor , typename = std::enable_if_t<std::is_base_of< GeometryDescriptor, std::decay_t<Descriptor>>::value>>

void VolViz::Private_::Geometry::enqueueUpdate ( Descriptor &&  descriptor )

inline

void VolViz::Private_::Geometry::init

(

)

void VolViz::Private_::Geometry::render	(	std::uint32_t	index,
		bool	selected
	)

void VolViz::Private_::Geometry::update ( )

inline

Member Data Documentation

Color VolViz::Private_::Geometry::color {Colors::White()}

MoveMask VolViz::Private_::Geometry::moveMask {MoveMask::All}

Orientation VolViz::Private_::Geometry::orientation {Orientation::Identity()}

Position VolViz::Private_::Geometry::position {Position::Zero()}

Length VolViz::Private_::Geometry::scale {1 * milli * meter}

VisualizerImpl& VolViz::Private_::Geometry::visualizer_

protected

---

The documentation for this class was generated from the following files:

• /home/travis/build/ithron/VolViz/Source/Geometry.h
• /home/travis/build/ithron/VolViz/Source/Geometry.cpp
