VolViz::Camera Class Reference

#include <Camera.h>

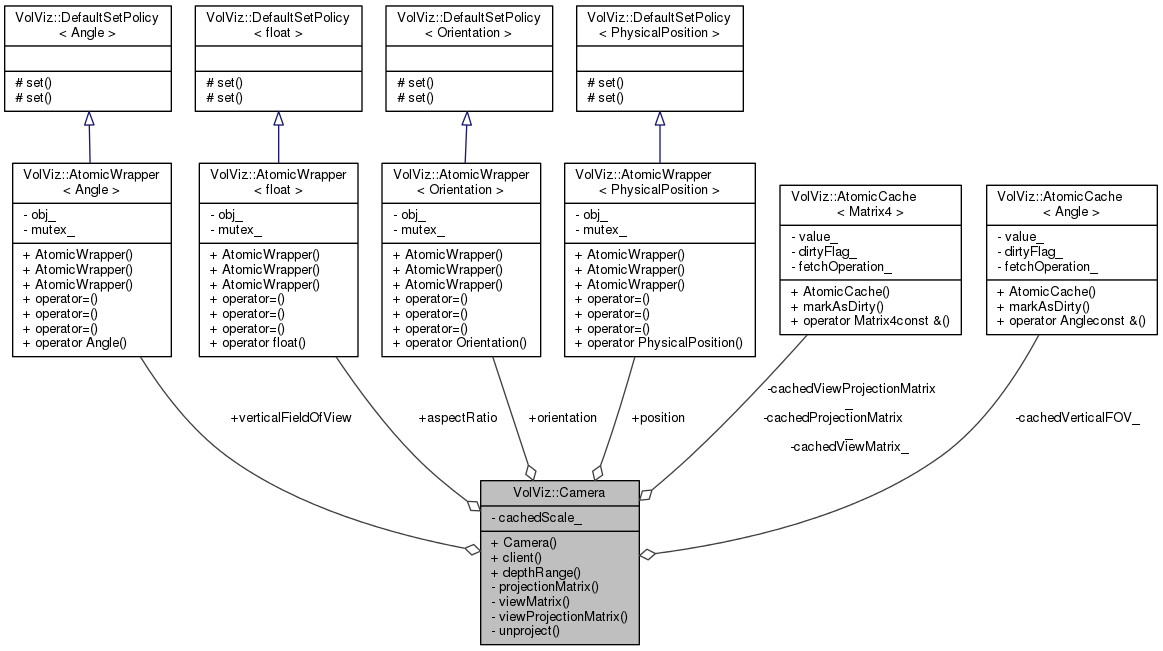

Collaboration diagram for VolViz::Camera:

Public Member Functions
	Camera () noexcept
Private_::CameraClient	client () const noexcept
DepthRange	depthRange () const noexcept

Public Attributes
Property< Orientation >	orientation {Orientation::Identity()}
	The camera's orientation. More...
Property< PhysicalPosition >	position
Property< Angle >	verticalFieldOfView {110 * degree_angle}
	Vertical field of view in rad. More...
Property< float >	aspectRatio {4.f / 3.f}
	Aspect ratio (width / height) or horizontal FOV / vertical FOV. More...

Private Types
template<class T >
using	Property = AtomicWrapper< T, SetAndNotifyPolicy >

Private Member Functions
Matrix4	projectionMatrix () const noexcept
	Returns the camera's projection matrix. More...
Matrix4	viewMatrix () const noexcept
	Returns the camera's view matrix, i.e. the inverse camera transform. More...
Matrix4	viewProjectionMatrix () const noexcept
	Returns the product of projectionMatrix() * viewMatrix(...) More...
Position	unproject (Position2 const &screenPos, float depth, Length ambientScale) const noexcept

Private Attributes
AtomicCache< Matrix4 >	cachedProjectionMatrix_
	Cached projection matrix. More...
AtomicCache< Matrix4 >	cachedViewMatrix_
	Cached view Matrix. More...
AtomicCache< Matrix4 >	cachedViewProjectionMatrix_
	Cached product viewMatrix * projectionMatrix. More...
AtomicCache< Angle >	cachedVerticalFOV_
	Cached vertical FOV. More...
Length	cachedScale_
	Cached scale of last call to viewMatrix(...) More...

Friends
class	Private_::CameraClient

Detailed Description

Basic camera class. The camera has a physical location, an orientation and a field of view. The field of view is specified as the horizontal FOV, the vertical FOV is computed from the apect radius.

Note

All properties are thread safe.

Member Typedef Documentation

template<class T >

using VolViz::Camera::Property = AtomicWrapper<T, SetAndNotifyPolicy>

private

Constructor & Destructor Documentation

VolViz::Camera::Camera ( )

noexcept

Member Function Documentation

Private_::CameraClient VolViz::Camera::client ( ) const

noexcept

Returns a client object that can be used to access cached projection and view matrices, as well as methods like unprojecting.

See Also

CameraClient

Note

The retunred CameraClient object can only be accesses by an VisualizerImpl instance to prevent race coditions.

DepthRange VolViz::Camera::depthRange ( ) const

inlinenoexcept

Returns the depth range of the camera projection, i.e. the depth value of the nearest possible value (near plane) and the value of the farest possible depth value (far plane),

Matrix4 VolViz::Camera::projectionMatrix ( ) const

privatenoexcept

Returns the camera's projection matrix.

Position VolViz::Camera::unproject ( Position2 const &  screenPos, float  depth, Length  ambientScale  ) const

privatenoexcept

Unprojects a point in screen coordinates with known depth into the 3D scene

Parameters

screenPos	the source point in screen coordinate system, i.e. (-1, -1) is the bottom left, (1, 1) is the top right
depth	the depth of the pixel at screenPos
ambientScale	the physical length of one unit in the target 3D space

Matrix4 VolViz::Camera::viewMatrix ( ) const

privatenoexcept

Returns the camera's view matrix, i.e. the inverse camera transform.

Matrix4 VolViz::Camera::viewProjectionMatrix ( ) const

privatenoexcept

Returns the product of projectionMatrix() * viewMatrix(...)

Friends And Related Function Documentation

friend class Private_::CameraClient

friend

Member Data Documentation

Property<float> VolViz::Camera::aspectRatio {4.f / 3.f}

Aspect ratio (width / height) or horizontal FOV / vertical FOV.

AtomicCache<Matrix4> VolViz::Camera::cachedProjectionMatrix_

mutableprivate

Initial value:

{
      [this]() { return projectionMatrix(); }}

Cached projection matrix.

Length VolViz::Camera::cachedScale_

mutableprivate

Cached scale of last call to viewMatrix(...)

AtomicCache<Angle> VolViz::Camera::cachedVerticalFOV_

mutableprivate

Initial value:

{
      [this]() { return static_cast<Angle>(verticalFieldOfView); }}

Cached vertical FOV.

AtomicCache<Matrix4> VolViz::Camera::cachedViewMatrix_

mutableprivate

Initial value:

{
      [this]() { return viewMatrix(); }}

Cached view Matrix.

AtomicCache<Matrix4> VolViz::Camera::cachedViewProjectionMatrix_

mutableprivate

Initial value:

{
      [this]() { return viewProjectionMatrix(); }}

Cached product viewMatrix * projectionMatrix.

Property<Orientation> VolViz::Camera::orientation {Orientation::Identity()}

The camera's orientation.

Property<PhysicalPosition> VolViz::Camera::position

Initial value:

{
      PhysicalPosition{0 * milli * meter, 0 * milli *meter, 0 * milli *meter}}

Position of the camera plane in space, i.e. the orientation of the camera projection plane's normal

Property<Angle> VolViz::Camera::verticalFieldOfView {110 * degree_angle}

Vertical field of view in rad.

---

The documentation for this class was generated from the following files:

• /home/travis/build/ithron/VolViz/include/VolViz/src/Camera.h
• /home/travis/build/ithron/VolViz/Source/Camera.cpp
